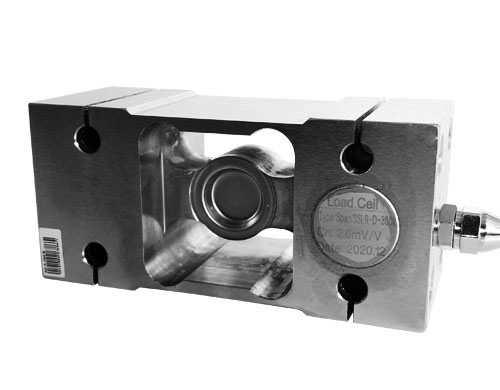

SSL9-D稱重傳感器
技術參數 額定載荷 Rated load kg 50/100/150/200/250/500/750…
咨詢熱線：18861692395
郵箱：yxmote@qq.com
- 準確度等級：OIML C3
- 長期穩定性好
- 優質合金鋼材質
- 適合大臺面臺秤、面粉秤、皮帶秤等使用
技術參數
| 額定載荷 Rated load | kg | 50/100/150/200/250/500/750/1000/2000 |
| 靈敏度 Sensitivity | mV/V | 2.0±0.2 |
| 綜合誤差 Total error | %F.S | ±0.023 |
| 蠕變 Greep (30min) | %F.S | ±0.02 |
| 零點輸出 Zero balance | %F.S | ±2 |
| 溫度補償范圍 Compensated Tem range | ℃ | -10～+40 |
| 工作溫度范圍 Operating Tem range | ℃ | -30～+70 |
| 靈敏度溫度漂移 Tem effect on sensitivity | %F.S.℃ | ±0.002 |
| 零點溫度漂移 Tem effect on zero balance | %F.S.℃ | ±0.002 |
| 輸入電阻 Input resistance | Ω | 400±20 |
| 輸出電阻 Output resistance | Ω | 352±5 |
| 絕緣電阻 Insulation resistance | MΩ | ≥5000 |
| 推薦激勵電壓 Recommend excitation | V | 5～12 |
| ***激勵電壓 Maximum excitation | V | 18 |
| 安全過載 Sate overload | %F.S | 120 |
| 極限過載 Ultimate overload | %F.S | 150 |
| 防護等級 Protection Class | IP65 | |
| ***秤臺尺寸 Max.platform size | mm | 800×800 |
安裝尺寸
單位：mm
